14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm

Name: 14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm
Brand: RINO
Price: 1 USD

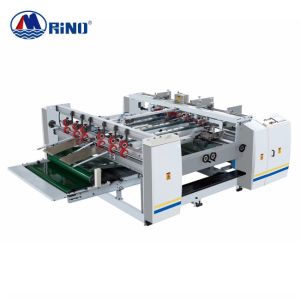

Quality 14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm wholesale

Brand Name : RINO

Model Number : HF-GD2600

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Name : 2600 Double Pieces Pressing Type Semi-Automatic Carton Box Folder Gluer Machine

Max Paper Size : 1300x1300mm

Min Paper Feeding Size : 450x320 mm

Max Height Of Stack : 400mm

Main Motor Power : 1.5KW

Total Power : 14KW

Total Weight : 3000kg

Dimensions Size : 4000x4000x1400mm

Contact Now

2600 Double Pieces Pressing Type Semi-Automatic Carton Box Folder Gluer Machine

Carton Box Folder Gluer Machine Introduction

Existing AB sheet carton gluing process: 1. Traditional manual glue brush manual gluing. 2. Apply glue with the old box gluing machine, and then manually glue. The existing processing technology of workers labor cost is high, low efficiency, and gluing precision and quality control is difficult, easy to cause quality accidents. The aforesaid problems have been effectively solved by the advanced technology of woori high speed AB plate gluing machine.

Machine Features

1. The front feeding section of the carton gluing machine is equipped with two cardboard stacking places, which are used to stow AB two pieces of cardboard, so as to improve the production efficiency. The following suction structure is used to improve the conveying accuracy and efficiency.
2. In the middle section, the paper transfer butt joint is bonded by hot sols, and the paper board is in the specified position on all sides, with accurate positioning and high precision.
3. After the section of the folding part, the use of manual folding, effectively solve the die-cutting indentation and corrugated position is not good to determine the problem, carton adhesive size is effectively controlled.
4. This machine can be operated by two people, one person in the front is responsible for paper and the number of pasted carton packaging; One person at the back is responsible for folding the cardboard and feeding it into the pressed belt, which is easy to operate and easy to use.

Parameter of Carton Box Folder Gluer Machine

Model	HF-GD2300	HF-GD2600	HF-GD3000
Max Output Paper Size (Single)	1150x1300mm	1300x1300mm	1500x1300mm
Mini Feed Size (Single)	450x320 mm	450x320 mm	550x450 mm
Max Height Of Stack	400mm	400mm	400mm
Main Motor Power	1.5Kw	1.5Kw	1.5Kw
Total Power	14KW	14KW	18Kw
Total Weight	2.5T	3.0T	4.0T
Dimensions Size	3500x4000x1400mm	4000x4000x1400mm	4500x4000x1400mm

Carton Box Folder Gluer Machine Detail

14KW Carton Box Folder Gluer Machine Double Pieces 1300x1300mm

Feeding Unit

The feeding unit of the machine has two paper board stack to hold AB two pieces of papers, which helps to improve the production efficiency. Below adopt the air sucking structure, which is conducive to improve transport efficiency and accuracy.

Alignment system

Connecting unit adopts hot melt adhesive, servo positioning, ensuring accurate register and high precision.

Main parts list

Name	Brand	Model
Interface	HCFA China	EA-070BC
PLC	HCFA China	A8c-24x24yt-d
Inverter	LITE-ON Taiwan	DVP-M
Power supply	Mean well Taiwan	S-250-24
Servo motor	HCFA China	MSD-KAD15AA+SM80
Contactor	Schneider France	D0910
Intermediate relay	Hequan China
Button	Schneider France
optoelectronic switch	Omron Japan
pneumatic element	AirTAC Taiwan

Product Tags:

Double Pieces Carton Box Folder Gluer Machine

1300mm Carton Box Folder Gluer Machine
